Axial Drilling & Milling Head

w/ Collet Chuck

Model	D DIN69880	X Capacity	S	MAX r p m	i	A	B	C	E	F	P DIN5482
DA20548220
DA30548225	30	1-16/ER25	42	6000	1:01	101	70	33	66	66	B15X12
DA40548232	40	2-20/ER32	50	6000	1:01	89	55	39	79	78	B17X14
DA50548240	50	3-26/ER40	63	6000	1:01	128	85	40	84	88	B20X17
DA60548250	60	10-34/ER50	78	6000	1:01	154	98	52	104	104	B25X22

Axial Tapping Head

w/ Collet Chuck

Model	D DIN69880	X Capacity	S	MAX r p m	i	A	B	C	E	F	P DIN5482
TDA30548216	30	1-10/ER16	32	3000	1:1	115	70	33	66	66	B15X12
TDA40548220	40	1-13/ER20	35	3000	1:1	120	55	39	79	78	B17X14
TDA50548225	50	1-16/ER25	42	3000	1:1	133	85	40	84	88	B20X17
TDA60548232	60	2-20/ER32	50	3000	1:1	147	98	52	104	104	B25X22

Axial Cutting Head

to DIN 6358

Model	D DIN69880	X DIN6358	S	MAX r p m	i	A	B	C	G	P DIN5482
DA30548216C	30	16	32	3000	1:1	91.5	70	68	27	B15X12
DA40548216C	40	16	32	3000	1:1	68.5	55	68	27	B17X14
DA40548222C	40	22	32	3000	1:1	68.5	55	86	31	B17X14
DA50548222C	50	22	40	3000	1:1	117	85	96	31	B20X17
DA50548227C	50	27	40	3000	1:1	117	85	96	33	B20X17

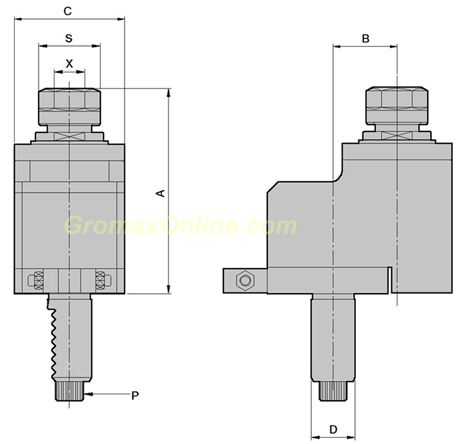

Axial Drilling & Milling Head

Offset w/ Collet Chuck

Model	D DIN69880	X Capacity	S	MAX r p m	i	A	B	C	P DIN5482
DA3054822529	30	1-16/ER25	42	4000	1:1	100	29	60	B15X12
DA4054823250	40	2-20/ER32	50	4000	1:1	113	50	80	B17X14
DA5054824065	50	3-26/ER40	63	3000	1:1	124	65	86	B20X17
DA6054825065	60	10-34/ER50	78	3000	1:1	168	65	104	B25X22
DA6054825080	60	10-34/ER50	78	3000	1:1	173.5	80	104	B25X22
