R1020CL1 , RADIAL DRILL HOLDER L H
R1020CL1 , RADIAL DRILL HOLDER L H

Our Price: $2,330.00

Stock Status:(Out of Stock)

Part Number: BL2018091657
Qty:

Description


Description

R10 Radial 1809 Left D/M Backward Head (D=20, ER16)
R10 Radial Drilling & Milling Backward Head
Coupling to DIN1809 (Duplomatic Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2" Double Speed (DS)

Main Features

For Milling, Drilling Reaming.
To be used for Collet DIN 6499
For clockwise and counter-clockwise rotation.
External Coolant supply
Collet is not included

Part Number :BL2018091657

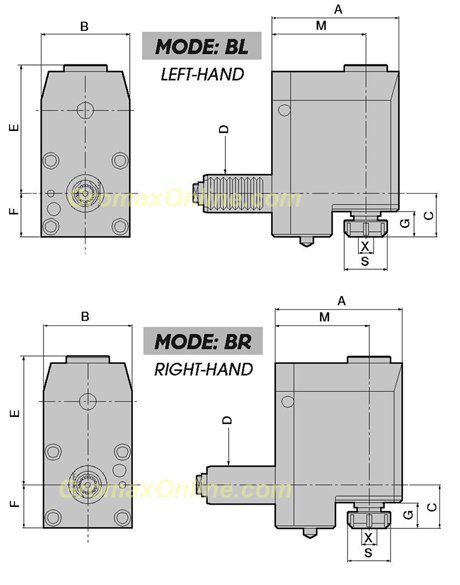

D DIN6988020
X Capacity1-10/ ER16
S32
Max rpm5000
i1:1
A80
B50
C43
E62.5
F27
G28.5
M57
Old# Right-HandR1020CR1
Old# Left-HandR1020CL1
