R960BL1 , RADIAL DRILL HOLDER LH WITH IC
R960BL1 , RADIAL DRILL HOLDER LH WITH IC

Our Price: $3,280.00

Stock Status:(Out of Stock)

Part Number: BL4054823290K
Qty:

Description


Description

R9 Radial 5482 Left D/M Backward Head w/ IC (D=40, ER32)
R9 Radial Drilling & Milling Backward Head
Coupling to DIN5482 (Sauter Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2" Double Speed (DS)

Main Features

For Milling, Drilling Reaming.
To be used for Collet DIN 6499
For clockwise and counter-clockwise rotation.
External Coolant supply
Collet is not included

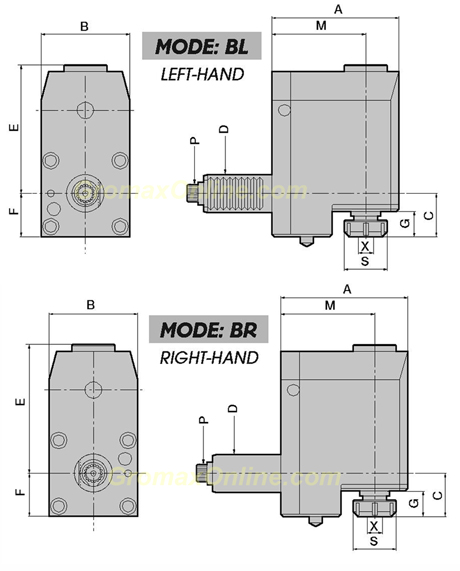

Part Number :BL4054823290K


P DIN5482B17X14
M90
G34
F42
E110
C44
B80
A124
i1:1
Max rpm5000
S50
X Capacity2-20/ ER32
D DIN6988040
