BR3018092569: R1030CR1 , RADIAL DRILL HOLDER RH
BR3018092569: R1030CR1 , RADIAL DRILL HOLDER RH

Our Price: $2,440.00

Stock Status:(Out of Stock)

Part Number: BR3018092569
Qty:

Description


Description

R10 Radial 1809 Right D/M Backward Head (D=30, ER25)
R10 Radial Drilling & Milling Backward Head
Coupling to DIN1809 (Duplomatic Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2" Double Speed (DS)

Main Features

For Milling, Drilling Reaming.
To be used for Collet DIN 6499
For clockwise and counter-clockwise rotation.
External Coolant supply
Collet is not included

for YCM GT200MA

Part Number :BR3018092569

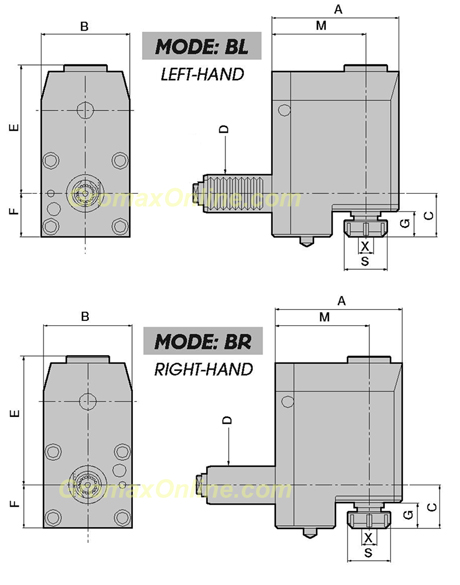

D DIN6988030
X Capacity1-16/ ER25
S42
Max rpm5000
i1:1
A95
B60
C41.5
E75.5
F31.5
G29
M69
Old# Right-HandR1030CR1
Old# Left-HandR1030CL1
