R830AR1 , RADIAL DRILL HOLDER RH WITH IC
R830AR1 , RADIAL DRILL HOLDER RH WITH IC

Our Price: $4,150.00

Stock Status:(Out of Stock)

Part Number: BR3054802569K
Qty:

Description


Description

R8 Radial 5480 Right D/M Backward Head w/ IC (D=30, ER25)
R8 Radial Drilling & Milling Backward Head
Coupling to DIN5480 (Sauter Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2" Double Speed (DS)

Main Features

For Milling, Drilling Reaming.
To be used for Collet DIN 6499
For clockwise and counter-clockwise rotation.
External Coolant supply
Collet is not included

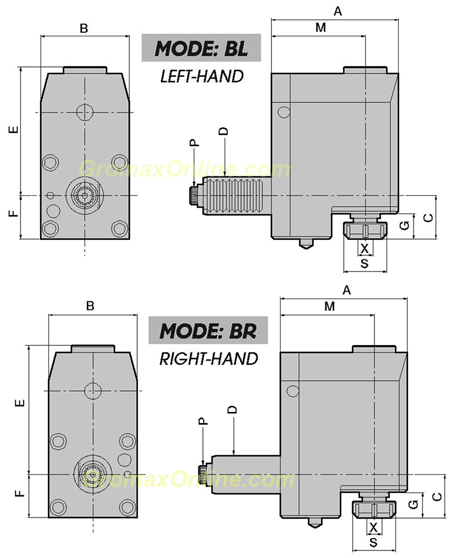

Part Number :BR3054802569K


P DIN5480W16X0.8
D DIN6988030
X Capacity1-16/ ER25
S42
Max rpm5000
i1:1
A95
B60
C42
E75.5
F31.5
G28.5
M69
