BR4054803290 , RADIAL DRILL HOLDER RH, INPUT/OUTPUT Opposite Direction
BR4054803290 , RADIAL DRILL HOLDER RH, INPUT/OUTPUT Opposite Direction

Our Price: $2,950.00

Stock Status:(Out of Stock)

Part Number: BR4054803290
Qty:

Description


BR4054803290
Description

R8 Radial 5480 Right D/M Backward Head (D=40, ER32)
R8 Radial Drilling & Milling Backward Head
Coupling to DIN5480 (Sauter Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2" Double Speed (DS)

Main Features

For Milling, Drilling Reaming.
To be used for Collet DIN 6499
For clockwise and counter-clockwise rotation.
External Coolant supply
Collet is not included

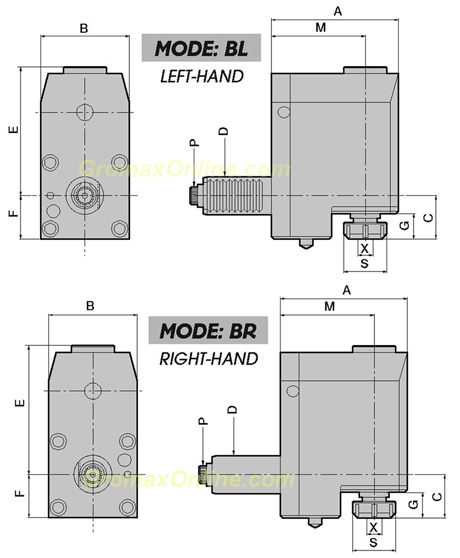

Part Number :BR4054803290


D DIN6988040
X Capacity2-20/ER32
S50
Max rpm5000
i1:1
A124
B80
C44
E110
F42
G34
M90
P DIN5480W20X0.8
Old# Right-HandR840AR1
Old# Left-HandR840AL1
