R1140MR1 , RADIAL DRILL HOLDER RH Internal Coolant
R1140MR1 , RADIAL DRILL HOLDER RH Internal Coolant

Our Price: $3,100.00

Stock Status:(Out of Stock)

Part Number: BR40MT3290K
Qty:

Description


Description

R18 Radial MT Right D/M Backward Head w/ IC (D=40, ER32)
R18 Radial Drilling & Milling Backward Head
Spur Coupling-MT (Brauffaldi Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT)

Main Features

For Milling, Drilling Reaming.
To be used for Collet DIN 6499
For clockwise and counter-clockwise rotation.
External Coolant supply
Collet is not included

Part Number :BR40MT3290K


D DIN6988040
X Capacity2-20/ ER32
S50
Max rpm5000
i1:1

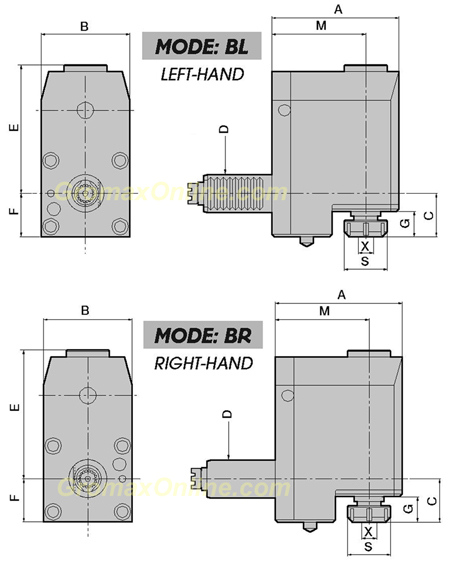

A124
B80
C44
E110
F42
G34
M90
