DA30548225 , VDI TOOL HOLDER DA-30-5482-B15

Categories

cart (0)

Home > Rotating/ Static Holder ( VDI System: 1809/ 5480/ 5482/ IT/ MT ) >

Our Price: $960.00

Stock Status:In stock

Part Number: DA30548225

Qty:

Description

Description

A2 Axial 5482 D/M Head w/ Collet Chk (D=30, ER25)
A2 Axial Drilling & Milling Head w/ Collet Chuck
Coupling to DIN5482 (Sauter Type)
Model# with "K": Internal Coolant (IC)

Main Features

To be used for collet DIN6499
External coolant supply
Collet is not included
For endmilling, drilling, reaming
For clockwise and counter-clockwise rotation

Part Number :DA30548225

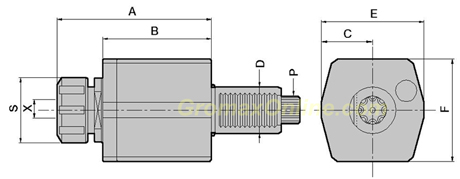

Ref#	DA30-5482
D DIN69880	30
X Capacity	1-16/ER25
S	42
Max rpm	6000
i	1:1
A	101
B	70
C	33
E	66
F	66
P DIN5482	B15X12
Old#	A230B1
