DA30MT16C: AXIAL CUTTING HEAD TO DIN6358
DA30MT16C: AXIAL CUTTING HEAD TO DIN6358

Our Price: $1,700.00

Stock Status:(Out of Stock)

Part Number: DA30MT16C
Qty:

Description


Description

A15 Axial MT Cutting Head to DIN6358 (D=30, X=16)
A15 Axial Cutting Head to DIN 6358
Spur Coupling-MT (Brauffaldi Type)

Main Features

To be used for cutter arbor according to DIN 6358
For Various Cutters
Complete with intermediate rings and coolant pipe

Part Number :DA30MT16C


Ref#DA30-MT-CUT

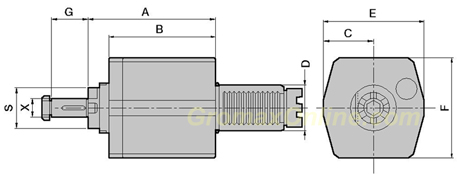

D DIN- 6988030
X Capacity DIN635816
S32
Max rpm3000
i1:1
A71
B55
C33
E66
F66
G27
