AXIAL CUTTING HEAD DIN 6358
AXIAL CUTTING HEAD DIN 6358

Our Price: $1,733.00

Stock Status:(Out of Stock)

Part Number: DA40548016C
Qty:

Description


Description

A7 Axial 5480 Cutting Head to DIN6358 (D=40, X=16)
A7 Axial Cutting Head to DIN 6358
Coupling to DIN5480 (Sauter Type)

Main Features

To be used for cutter arbor according to DIN 6358
For Various Cutters
Complete with intermediate rings and coolant pipe

Part Number :DA40548016C


Ref#DA40-5480-CUT

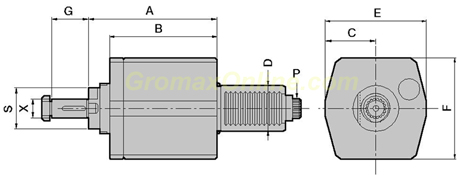

D DIN- 6988040
X Capacity DIN635816
S32
Max rpm3000
i1:1
A68.5
B55
C39
E79
F78
G27
P DIN5480W20X0.8
Old#A740A1
