DA50-MT, 3-26/ER40
DA50-MT, 3-26/ER40

Our Price: $1,900.00

Stock Status:In stock

Part Number: DA50MT40
Qty:

Description


Description

A25 Axial MT D/M Head w/ Collet Chk (D=50, ER40)
A25 Axial Drilling & Milling Head w/ Collet Chuck
Spur Coupling-MT (Brauffaldi Type)
Model# with "K": Internal Coolant (IC)

Main Features

To be used for collet DIN6499
External coolant supply
Collet is not included
For endmilling, drilling, reaming
For clockwise and counter-clockwise rotation

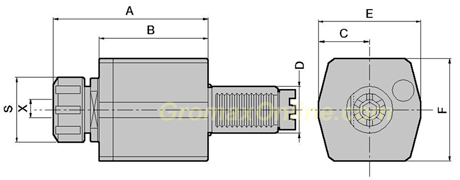

Part Number :DA50MT40


Ref#DA50-MT
D DIN6988050
X Capacity3-26/ER40
S63
Max rpm6000
i1:1
A123
B81.5
C40
E84
F88
Old#A450M1
