EDM-ZNC43E60: ZNC EDM TABLE 39 inch x22 inch x15 inch , 60 AMP
EDM-ZNC43E60: ZNC EDM TABLE 39 inch x22 inch x15 inch , 60 AMP

Our Price: $36,800.00

Stock Status:In stock

Part Number: EDM-ZNC43E60
Qty:

Description

Feature:
  • Industrial grade IPC CPU processor, 32 bit, CF 128MB, 15" LCD screen, standard linear scale with 5 um resolution.
  • Monitoring and fast suppression of abnormal arc-wave shape to ensure machining safety and mold quality.
  • Nine sets of home points setup, 100 sets of machining coordinates setup, memory of 100 sets of job files and 200 sets of C codes allowing for applications and memorizing machining parameters.
  • New generation of FUZZY intelligent editing function provides automatic editing of machining parameters of machining depth at each stage.
  • Available to be online with orbit-cut electrode holder for upgrading the OB function (Orbit Head, COC-280, sold separatly).
  • The super hard material machining circuit enables machining for tungsten steel and titanium alloy (optional)
Option: Can be on-link with ORBIT-CUT system. Orbiting function may work with Z axis 10 steps auto machining!Conversational programming for easy learning and operation.
Clear concise and well organized display.
X. Y axes High precision ballscrews.Remote control box: STANDARD

Function: (Orbit Head, COC-280, sold separatly)



Specification:
Specification EDM-ZNC325E60 EDM-ZNC43E60 EDM-ZNC55E90 EDM-ZNC755E120
Work Tank (LxWxH) 860 x 530 x 350mm 34" x 21" x 14" 990 x 565 x 380 mm
39"x22"x15"
1170 x 690 x 425 mm
46"x27"x17"
1730 x 1000 x 550 mm
68"x39"x21"
Work Table (LxW) 650 x 350 mm
26" x 14"
650 x 350 mm
26" x 14"
800 x 450 mm
32"x18"
1100 x 600 mm
43"x23"
Table travel (X) 300 mm
12"
400 mm
16"
500 mm
20"
700 mm
27"
Table travel (Y) 250 mm
10"
300 mm
12"
400 mm
16"
550 mm
21"
Servo travel (Z) 150 mm
6"
180 mm
7"
200 mm
8"
250 mm
10"
Servo Travel (Z2) 200 mm
8"
250 mm
10"
300 mm
12"
300 mm
12"
Distance Between Spindle to Work Table 160-510 mm
6"-12"
160-590 mm
6"-23"
240-740 mm
9"-29"
330-880 mm
13"x35"
Max. Electrode Weight 120 kgs
264 Lbs
120 kgs
264 Lbs
220 kgs
485 Lbs
250 kgs
550 Lbs
Max. Workpiece Weight 550 kgs
1212 Lbs
550 kgs
1212 Lbs
1350 kgs
2976 Lbs
2000 kgs
4400 Lbs
Dimensions 2700 mm
106"
3100 mm
122"
4000 mm
157"
4900 mm
193"
2300 mm
91"
2500 mm
98"
2650 mm
104"
3650 mm
144"
2100 mm
83"
2350 mm
93"
2300 mm
91"
2500 mm
98"
Weight 1150 kgs
2536 Lbs
1200 kgs
2643 Lbs
1950 kgs
4299 Lbs
3100 kgs
6820 Lbs

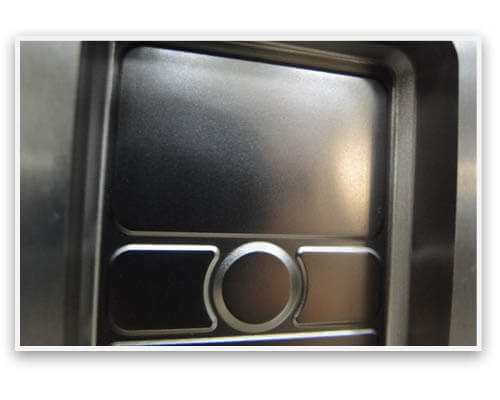

Sample
