R1550ML1 , RADIAL DRILL&MILL HOLDER LH
R1550ML1 , RADIAL DRILL&MILL HOLDER LH

Our Price: $3,200.00

Stock Status:(Out of Stock)

Part Number: FL30MT2565K
Qty:

Description


Description

R19 Radial MT Left D/M Forward Head w/ IC (D=30, ER25)
R19 Radial Drilling & Milling Forward Head
Spur Coupling-MT (Brauffaldi Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2": Double Speed (DS)

Main Features

To be used for collet DIN6499
For endmilling, drilling, reaming
For clockwise and counter-clockwise rotation
External coolant supply
Collet is not included

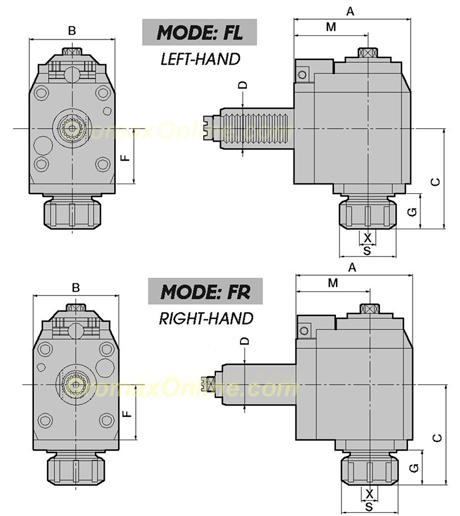

Part Number :FL30MT2565K


D DIN6988030
X Capacity1-16/ER25
S42
Max rpm5000
i1:1
A97
B64
C74.5
F41
G26
M65
