R1550ML1 , RADIAL DRILL&MILL HOLDER LH
R1550ML1 , RADIAL DRILL&MILL HOLDER LH

Our Price: $3,350.00

Stock Status:(Out of Stock)

Part Number: FR40MT3265K
Qty:

Description


Description

R19 Radial MT Right D/M Forward Head w/ IC (D=40, ER32)
R19 Radial Drilling & Milling Forward Head
Spur Coupling-MT (Brauffaldi Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2": Double Speed (DS)

Main Features

To be used for collet DIN6499
For endmilling, drilling, reaming
For clockwise and counter-clockwise rotation
External coolant supply
Collet is not included

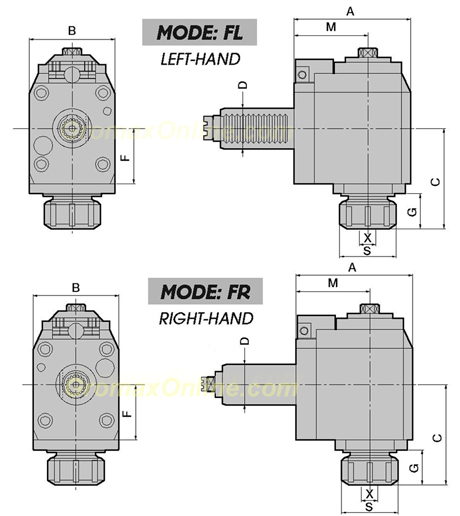

Part Number :FR40MT3265K


D DIN6988040
X Capacity2-20/ER32
S50
Max rpm5000
i1:1
A99
B80
C71
F40
G23
M65
