R1550MR1 , RADIAL DRILL&MILL HOLDER RH
R1550MR1 , RADIAL DRILL&MILL HOLDER RH

Our Price: $3,000.00

Stock Status:In stock

Part Number: FR50MT4075
Qty:

Description


Description

R19 Radial MT Right D/M Forward Head (D=50, ER40)
R19 Radial Drilling & Milling Forward Head
Spur Coupling-MT (Brauffaldi Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2": Double Speed (DS)

Main Features

To be used for collet DIN6499
For endmilling, drilling, reaming
For clockwise and counter-clockwise rotation
External coolant supply
Collet is not included

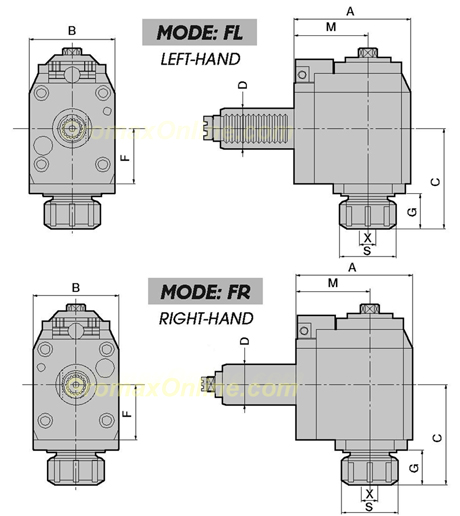

Part Number :FR50MT4075


D DIN6988050
X Capacity3-26/ER40
S60
Max rpm5000
i1:1
A115
B88
C103
F56
G40
M75
Old# Right-HandR1550MR1
Old# Left-HandR1550ML1
