MG-5CV-S1: MG-5CV-S1, SUBURBAN MASTER-GRIND FIXTURE
MG-5CV-S1: MG-5CV-S1, SUBURBAN MASTER-GRIND FIXTURE

Our Price: $3,425.00

Stock Status:(Out of Stock)

Part Number: MG-5CV-S1
Qty:

Description


Description

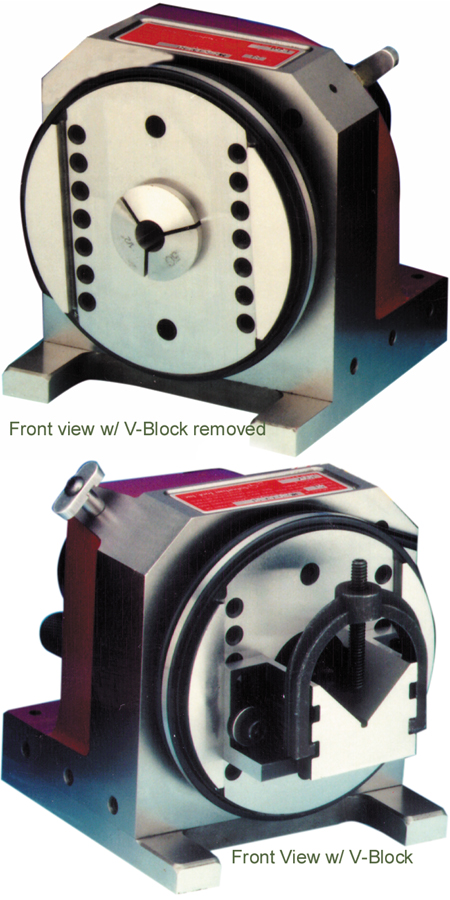

SUBURBAN Master-Grind� Index Fixture
Suburban Master Grind Index Fixture

Main Features

Features of MG-5CV-S1:
1. Punch grinding, EDM Electrode forming,
inspection as well as many other operation;
2. V-Block & collet in one fixture;
3. 72 position index plate 5o every index
accurate to +10 arc seconds;
4. Built-in sine bar for setting angles
between index locations;
5. Horizontal or vertical V-block mounting;
6. Spindle runs in two heavy duty 4� tapered roller bearings;
7. Max. spindle runout 0.00005� square & parallel within 0.0002�;
8. fitted case included

Part Number :MG-5CV-S1


V-BLOCK CAPACITY1-5/8
COLLET CAPACITYALL 5C
THROUGH HOLE1-1/4
CENTER HEIGHT3
HEIGHT6
BASE LENGTH4
BASE WIDTH5
WEIGHT(#)22
